Liquor Water Reducer

01 Overview

Polycarboxylic superplasticizer is a high-performance concrete admixture primarily used to enhance concrete's workability, strength, and durability. It improves concrete properties by dispersing cement particles to reduce water content. Due to its outstanding performance, polycarboxylic superplasticizer is widely applied in various concrete projects, including bridges, high-rise buildings, and hydraulic engineering. It is also an environmentally friendly product with minimal environmental impact.

  • Polycarboxylate Superplasticizer is a type of water-reducing admixture based on polycarboxylate ether polymers.
  • Its design is intended to effectively disperse cement particles, maintaining or enhancing concrete workability while significantly reducing water consumption.
  • Offers high efficiency compared to earlier generations like naphthalene sulfonates or lignosulfonates.

Composition and Chemistry

  • Main components:
    • Polycarboxylate ether backbone (polymer chains).
    • Pendant side chains (usually polyethylene glycol or similar) that provide steric hindrance.
  • The chemical structure allows for strong adsorption on cement particles, providing excellent dispersing action.

Benefits of Polycarboxylate Superplasticizers

  • High fluidity at low dosages: Enhanced flowability with less superplasticizer.
  • Reduced water-cement ratio: Improves strength and durability.
  • Excellent slump retention: Maintains workability over time.
  • Compatibility: Suitable for various types of cement and supplementary cementitious materials.

02 Liquor Polycarboxylate Superplasticizer

PRODUCT FAMILY PRODUCT NAME CODE FEATURES AND RECOMMENDATIONS PRODUCT DESCRIPTION STANDARD

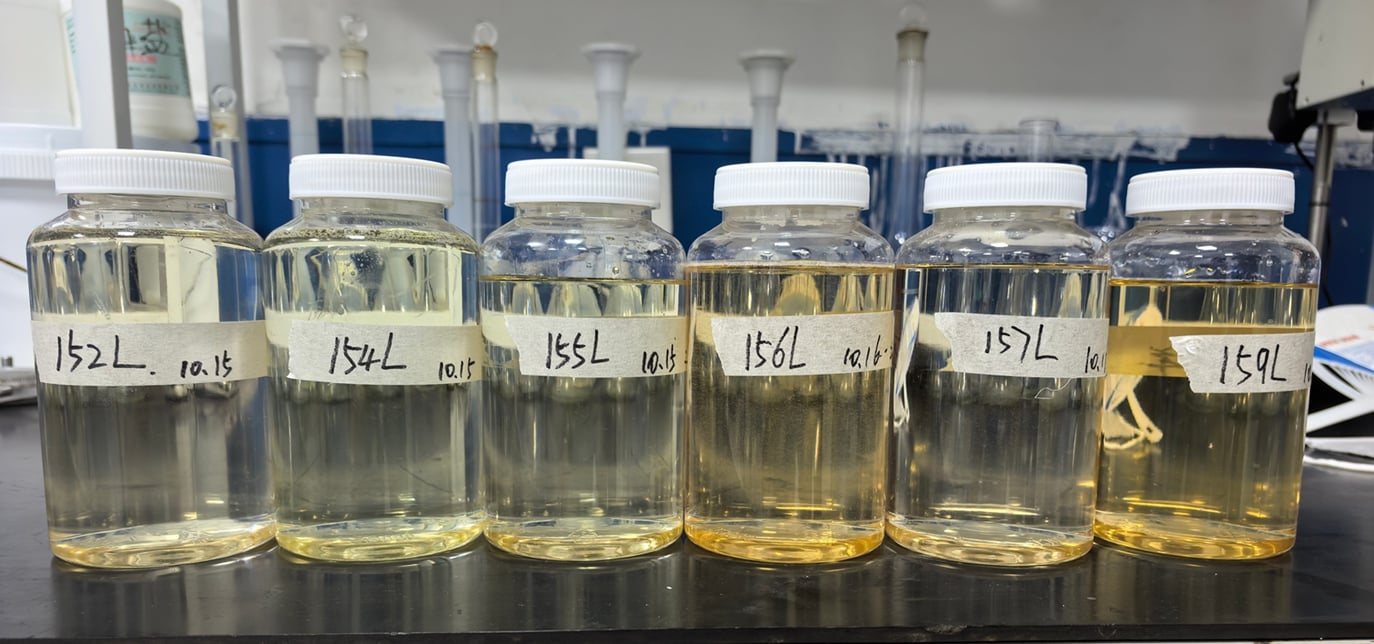

Mother Liquid PCE HIGH-RANGE,WATER-REDUCERS PCE-150L SD0107 Mid-water-reducing,High solid content, 70% Liquid EN934-2:T3
PCE-152L SD0161 Exhibit excellent performance in early strength growth Liquid

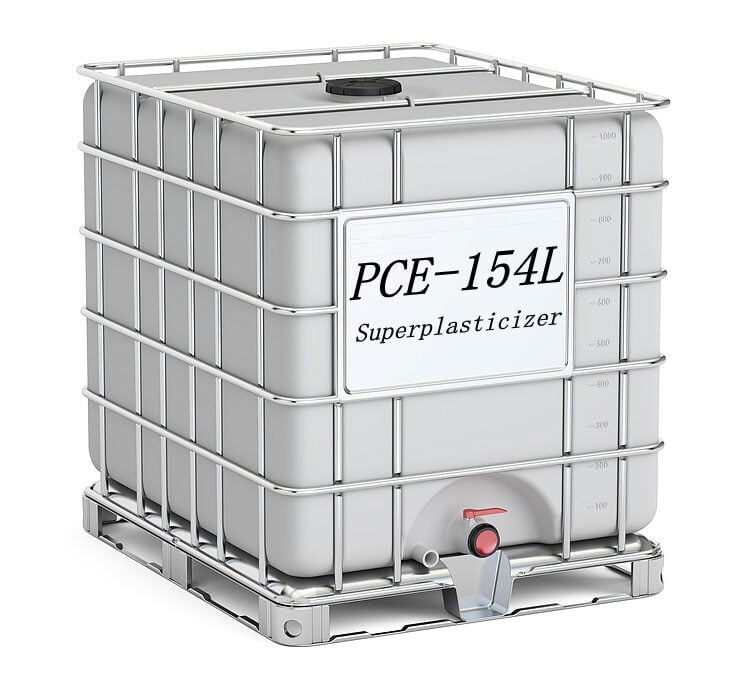

PCE-154L SD0106 Ultra high water reduction rate mother liquor,highly water-reducing Liquid
PCE-156L SD0109 Mid-slump retentionmid-water-reducing Liquid
PCE-155L SD0108 Slump retention Liquid
PCE-157L SD0110 Adjust the workability of concrete,highly slump retention Liquid
PCE-159L SD0162 Super early strength polycarboxylate high-performance water reducer Liquid

03 Functional Water-Reducers

PRODUCT FAMILY TYPE code FEATURES AND RECOMMENDATIONS DESCRIPTION STANDARD
 NORMAL  WATER-REDUCERS NWR50 SD0143 For lower strength concrete Naphthalene sulfonate-based EN934-2
 MId-Range  WATER-REDUCERS Ment NS SD0145 For Ready-mixed concrete, Small precast concrete products, Prestressed Concrete Cylinder Pipe(PCCP), Concrete pile Naphthalene sulfonate-based
Ment NS Powder SD0144 For Ready-mixed concrete, Small precast concrete products, Prestressed Concrete Cylinder Pipe(PCCP), Concrete pile
Ment NS95 SD0146 Superplasticizers for Roller Compacted Concrete(RCC)
PCE1015L SD0160 Mid-range water-reducing admixture for ready-mixed concrete. polycarboxylate ether-based
PCE1025L SD0158 Water-reducing admixture for industrial concrete floor slabs with power-floated finishes
HIGH-RANGE,WATER-REDUCERS PCE1016L SD0159 Superplasticizers for Aerated Autoclaved Concrete (AAC) polycarboxylate ether-based
PCE1026L SD0157 Superplasticizers,ready-mixed concrete, concrete for infrastructures
PCE1036L SD0156 Superplasticizers,Good retarding time for Mass Concrete(MC)
PCE1046L SD0155 Superplasticizers, Self-compacting concrete, Concrete with long delivery times(superior slump retention)concrete in hot climates,6-9 hours of ultra long collapse protection time
PCE1056L SD0154 Superplasticizers for low clinker concrete production
PCE1066L SD0153 Superplasticizers for industrial concrete floor slabs with power-floated finishes
PCE1076L SD0151 Superplasticizers concretes containing challenging sands such as those containing swelling clays.
PCE1085L SD0150 Self-compacting super plasticiser for use in GRC and precast concrete
PCE1086L SD0149 Superplasticizers, high early strength for Shotcrete or Precast concrete(Large box girders or T-beams used for railway or highway bridges)
PCE1096L SD0152 Superplasticizers, High performance for UHPC
PCE20SL SD0147 Superplasticizers, Operational time 8-12 hours excellent slump retention ability for top lifting method for construction of steel pipe arch or steel pipe column concrete
PCE20SP SD0148 Superplasticizers, high early strength for precast subway pipe segments  concrete or Tunnel segments

Packaging and storage

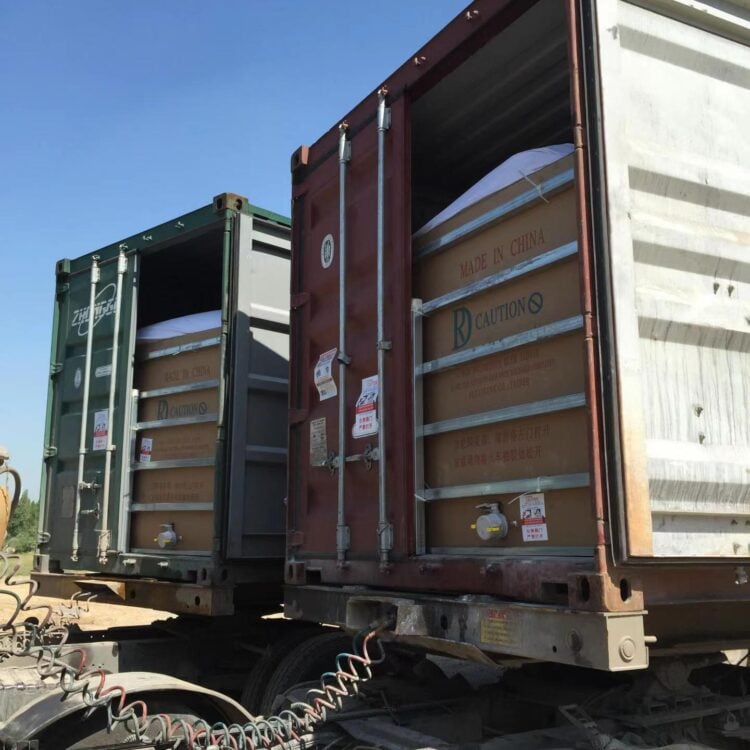

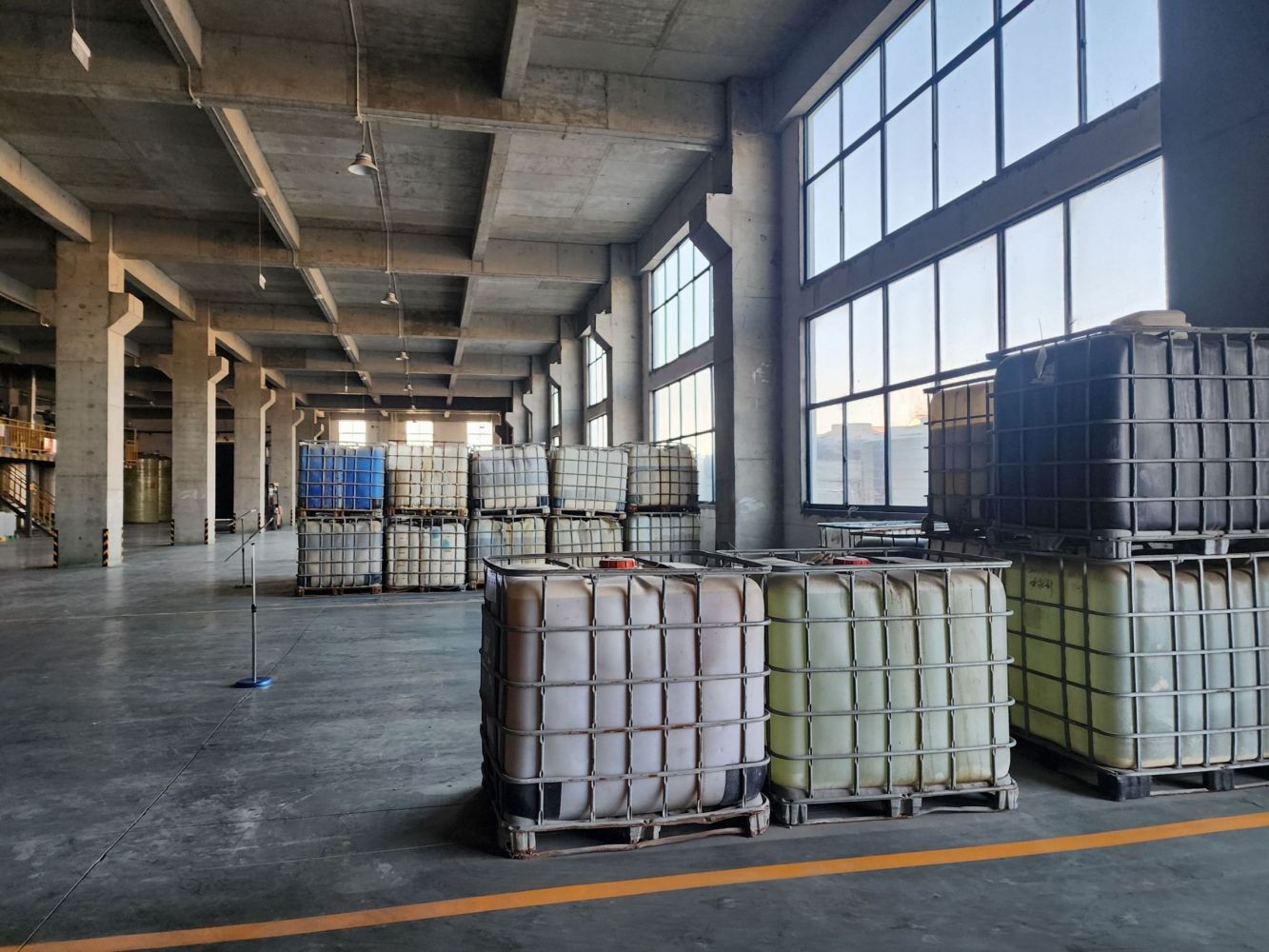

  1. The product is transported in plastic barrels or tank trucks and can also be packed in particular ways according to customer requirements;
  2. The product is non-toxic and non-flammable;
  3. Store the product in a cool place. Avoid long-term contact with steel products, cover for storage, avoid the sun, rain, and freezing, and the storage temperature should be between 0-40 ℃, lower than 0 ℃. There will be a phenomenon of freezing during storage. If it froze, heat until it melts and stir again before use;
  4. The shelf life is six months. If it exceeds, it can continue to be used after the technical indicators have passed the inspection and the performance indicators have been confirmed to meet the requirements by concrete trial mix verification.

Technical services

Our company has a complete after-sales service mechanism to provide technical consultation and on-site service for customers at any time, and the product performance can achieve the best use effect that satisfies users

04 Advantages of PCE

Polycarboxylic superplasticizer, as a new generation of water-reducing products, owns numerous significant advantages over traditional high-performance water reducers such as naphthalene sulfonate formaldehyde condensate (SNF) and sulfonated melamine formaldehyde resin (SMF). It exhibits higher water reduction rates, achieving outstanding performance at lower dosage levels. Additionally, polycarboxylic superplasticizers significantly reduce slump loss, demonstrate excellent compatibility with cement, and lower shrinkage rates. This results in more aesthetically pleasing solid structures and makes them suitable for diverse construction requirements.

Cost Savings and Environmental Economics

By utilizing polycarboxylic superplasticizers with high water-reduction rates, the water-binder ratio of concrete is significantly reduced. This innovation creates favorable conditions for incorporating substantial amounts of various mineral admixtures. This approach not only reduces costs for ready-mix concrete producers and decreases cement consumption—thereby conserving national energy resources—but also lowers the hydration heat of concrete. Simultaneously, this technology maximizes the utilization of industrial byproducts such as fly ash, slag powder, zeolite powder, and steel slag powder, offering both environmental and economic benefits. More importantly, the substantial incorporation of mineral admixtures substantially enhances the long-term durability of the concrete.

05 Precautions for Use

When using polycarboxylic superplasticizer, observe the following precautions:

(1) Do not mix with other admixtures, especially naphthalene-based water-reducing agents, as this will impair performance. Therefore, ensure storage tanks are thoroughly cleaned before use. If a mixer truck previously loaded concrete with naphthalene-based water-reducing agents, the mixing drum must be thoroughly cleaned before production.

(2) Although concrete mixed with naphthalene-based water-reducing agents and polycarboxylic superplasticizers can be placed together into concrete structures, ensure they are not mixed during use to prevent compromising concrete performance.

(3) Polycarboxylic superplasticizers are corrosive. Prolonged contact with iron may produce odors and cause color changes in the admixture. Therefore, avoid prolonged direct contact with iron containers during use.

06 Application of PCE in Concrete

  1. 1
    High-Performance Concrete (HPC)

    Used to produce concrete with superior mechanical properties and durability.

  2. 2
    Precast Concrete

    Enables precise shaping and smooth surfaces for precast components such as beams, slabs, and columns.

  3. 3
    Self-Compacting Concrete (SCC)

    Allows concrete to flow without vibration, reducing labor costs and improving construction efficiency.

  4. 4
    Ultra-High Performance Concrete (UHPC)

    Suitable for applications demanding extreme strength and durability, such as bridges and large-scale infrastructure projects.

  5. 5
    Shotcrete

    Widely used in tunnel and mining construction where rapid setting and high strength are required to ensure safety and stability.
