Blog

A water-based paint has too much foam, so more coating defoamer is added.

The foam disappears—but after application, small circular depressions or crater-like defects appear in the film.

Does this mean the defoamer is ineffective?

Not necessarily.

A defoamer must be incompatible enough to break foam, but compatible enough to disperse properly in the coating. If this balance is wrong, the foam problem may improve while a new surface defect appears.

Craters are not the same as pinholes. Pinholes are often associated with air bubbles that remain in the coating and burst too late.

Craters usually appear as circular depressions where the wet coating pulls away from a local area.

They can be related to surface tension gradients, poor wetting, contamination, or poorly dispersed additives. The American Coatings Association also identifies surface-tension differences and contaminants as common causes of coating craters.

Adding more defoamer does not always mean better foam control.

If the dosage becomes too high, incompatible defoamer droplets may remain in the coating and disturb film formation.

Typical signs include:

• foam is reduced but craters appear;
• oily spots appear on the wet film;
• gloss becomes uneven;
• defects increase as defoamer dosage increases.

In this situation, prepare a dosage ladder instead of continuing to increase the additive.

For example:

• Current dosage
• Slightly lower dosage
• Slightly higher dosage

Keep the rest of the formulation unchanged.

Different water-based paints may require different defoamer chemistries.

SidleyChem’s coating defoamer range includes mineral-oil and silicone-modified polyether systems designed for different compatibility and foam-control requirements. A defoamer that works well in one acrylic emulsion may behave differently in another system containing different:

-emulsifiers-dispersants-thickeners-pigments-fillers.

The addition stage can also affect performance. Part of the defoamer may be added during pigment dispersion, while another portion can be added during the let-down stage. If all of the defoamer is exposed to very high shear for too long, its effectiveness may change.

addition stage;mixing speed;mixing time;defoamer dosage.

If the formula is unchanged but the defect suddenly appears after changing the production process, check mixing before changing the additive.

Not every crater is caused by the defoamer itself.

Oil, silicone contamination, dirty equipment, substrate contamination, or poor wetting agent balance may also cause the coating to pull away locally.

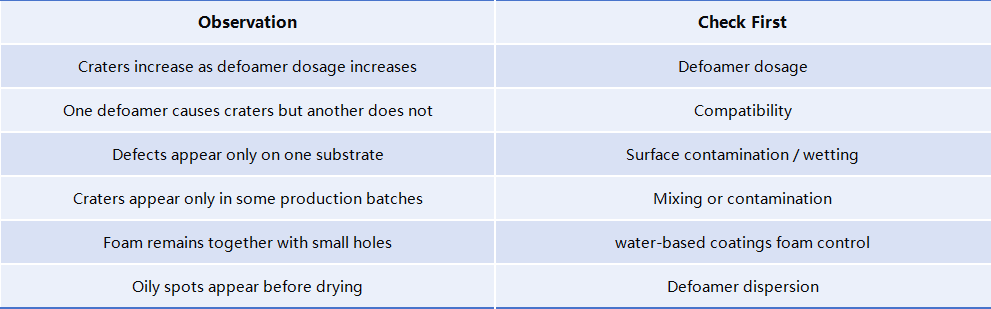

A simple comparison can help.

If the defoamer is confirmed as the main cause:

• reduce the dosage gradually;
• compare another defoamer chemistry;
• adjust the addition stage;
• avoid excessive high-shear treatment;
• check compatibility with dispersants and thickeners;
• evaluate both foam reduction and final film appearance.

Do not select a defoamer only by observing foam in the mixing tank.

The final evaluation should include:

• foam level;
• microfoam;
• craters;
• leveling;
• gloss;
• film appearance.

When paint craters appear after adding defoamer, the solution is not always to add more or less product immediately.

The real cause may be:

• excessive dosage;
• poor defoamer compatibility;
• incorrect addition stage;
• surface contamination;
• poor wetting;
• uneven additive dispersion.

A suitable defoamer should reduce foam without creating new surface defects.

For water-based coating formulators, foam control and film appearance should always be evaluated together.
