Methylcellulose(MHEC/HPMC)

01 Overview

SildeyCel ME/MP is a modified nonionic water-soluble cellulose ether specifically designed as a water-retention and viscosity-enhancing additive for cementitious mortars. Containing methyl, ethyl, and hydroxyethyl substituents, SildeyCel provides a unique balance between workability and strength. It is a highly significant water-retention and thickening agent in mortar formulations.

Construction grade cellulose ether is divided into Hydroxypropyl Methylcellulose(HPMC) and Methylhydroxyethylcellulose (MHEC) according to different substituent groups. The substitute groups of HEMC are hydroxyethyl and methoxy, while the substitute groups of HPMC are hydroxypropyl and methoxy. Compared with HPMC, HEMC has more hydrophilic groups, which means it has a relatively higher gel temperature, better water retention in hot environments, and better thermal stability. HPMC has better water retention and workability in wall putty, tile adhesive, and other products.


Construction Grade Cellulose Ether

Application Area Cellulose Ether Features Viscosity
(m.Pas)
Cement based Tile Adhesive Normal Tile Cement(C0) MP-17N02 Ultra High Viscosity 70000-80000
MP-H07N00 Super water-retention 70000-80000
MP-E6N02 Economical 60000-70000
EMP-05M02 Economical 50000-60000
Standard Tile Cement(C1T) MP-15M02 Good thickening 50000-60000
ME-H14N12 Good wettability 40000-50000
High Performance
Tile Cement(C2TE)
ME-H12N12 Excellent wettability 20000-30000
ME-10N02 Good workability 4000-8000
Render/
Stucco
Skim Coat/
Wall Putty
ME-H42M07 Good workability 20000-30000
ME-H43M07S Surface treatment 30000-40000
ME-H43M06 Good thickening 30000-40000
ME-H44N05 High water-retention 40000-50000
Neutral Wall Putty ME-H43M06 Good thickening 30000-40000
Grout MP-11M04 High strength 10000-20000
Self-leveling Mortar MP-50N00 Good flowability 400
Plaster of cement mortar Hand Mortar MP-02M03 Good workability 20000-30000
Machine-sprayed Mortar MP-01H01 Good thickening 10000-20000
ETICS/EIFS Finishing mortar ME-32N01 Good workability 20000-30000
Bonding mortar ME-34N01 High strength 40000-50000
EPS particle mortar ME-36M10 Better wrapping 60000-70000
Gypsum based Plaster Hand Plaster /
Machine-sprayed Plaster
ME-22H51 Good workability 20000-30000
ME-22H02 High strength 20000-30000
ME-23H31 Good thickening 30000-40000
ME-25H32 Excellent thickening 50000-60000
Wall Putty Gypsum based ME-H22M17 High water-retention 20000-30000
Gypsum based Grout ME-23M13 High water-retention 30000-40000
  1. Water Retention

The excellent water retention of Hydroxypropyl Methylcellulose allows the cement to have a longer time to hydrate and improve the adhesion of the mortar to the substrate. It effectively prevents the mortar from losing water too quickly and causes drying and cracking, and makes the mortar have a longer construction time.

  1. Construction Improvement

The thickening effect of Hydroxypropyl Methylcellulose can control the mortar to achieve the best consistency, improve the cohesion of the mortar, achieve the anti-dripping effect, improve the operability, and greatly improve the construction efficiency. The consistency and slip resistance of the mortar is a very important requirement. For thick layer construction and tile adhesive, the mortar needs to have the proper consistency and slip resistance.

  1. Improve the Bond Strength of the Mortar

Hydroxypropyl Methylcellulose can improve the bonding strength of mortar, even in high temperature environment, it can ensure sufficient moisture of mortar, and make cement fully hydrated, thus ensuring better bonding performance of the mortar and ensuring mortar to various substrates. All have a good bonding effect.

  1. Air entraining agent

In mortar, due to the addition of Hydroxypropyl Methylcellulose, a certain amount of tiny, uniform and stable bubbles are introduced into the fresh mortar. Due to the ball effect, the mortar has good workability, reducing the shrinkage of the mortar and the cracking, increase the yield of the mortar.

Surface Treatment Of HPMC

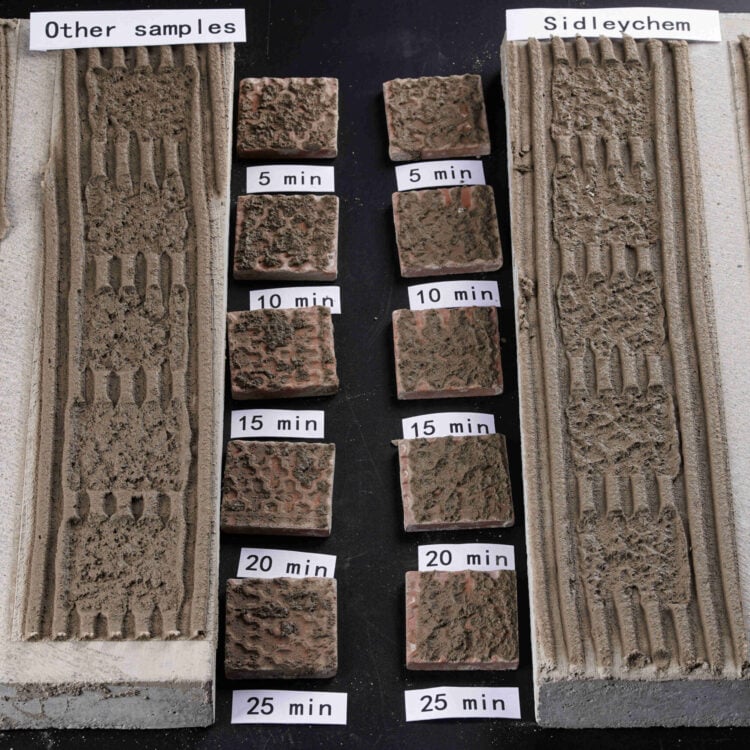

02 Excellent wetting properties

SidelyCel MP/ME significantly enhances mortar water retention, prolonging cement hydration time and extending open time. This effectively improves later-stage bond strength and overall durability. Particularly the H series maintains outstanding wetting performance even under high-temperature conditions.

03 Excellent thickening

Cellulose ether significantly enhances the viscosity of mortar. Within polymer-modified mortar, the molecular structure of cellulose ether forms a solution with a certain viscosity when combined with water. This increases the mortar’s consistency, making it easier to apply and trowel after mixing. Particularly when working on vertical surfaces or ceilings, it effectively prevents the mortar from sagging or slipping.

04 Produt Video

  1. 1
    Applications of HPMC

    1,Construction Industry
    In the construction industry, HPMC primarily serves as a thickener, water-retention agent, and film-forming agent. Its application in building materials such as mortar and tile adhesives significantly enhances workability. HPMC’s thickening effect improves the thixotropy of construction materials, making mortar easier to handle while enhancing post-application strength and stability.

    2,Personal Care Industry
    In personal care products, HPMC is widely used for thickening and moisturizing in detergents, hand washes, and similar items. Its excellent water solubility and viscosity enhance foam stability, improve skin feel, and increase product viscosity.

    3,Pharmaceutical Field
    In pharmaceutical applications, HPMC is extensively used in controlled-release drug systems, tablet binders, and capsule film formers. Its excellent biocompatibility makes it an ideal pharmaceutical excipient. Particularly in drug manufacturing, HPMC provides sustained drug release effects, ensuring stability within the body.

    4,Food Industry
    In the food industry, HPMC serves as a food additive for thickening, stabilizing, and emulsifying. Its application in baked goods, pastries, beverages, and other products helps improve food texture and enhance product stability.

  2. 2
    Dissolution Methods

    When using HPMC, the most critical step is proper dissolution. To ensure optimal performance, here are common dissolution methods:

    1. Cold Water Dissolution Method: Slowly add HPMC to cold water while stirring to facilitate gradual dissolution. This method is suitable for the cosmetics and food industries, enabling rapid formation of a uniform solution.

    2. Hot Water Dissolution Method: For faster dissolution, heat water to 80-90°C (176-192°F), then slowly add HPMC. Stir until completely dissolved and allow to cool before use. Continuous stirring is required during cooling. Use low-speed stirring to avoid excessive shear that could damage HPMC’s molecular structure.

  3. 3
    About SidleyCel ME/MP

    SidleyCel is the global brand of sidleychem, dedicated to the production and sale of various cellulose ethers. We produce cellulose ethers and conduct research on them, enabling us to recommend and customize the most suitable cellulose ether products for our customers. Contact us to design your cellulose ether.

    Our dedicated R&D team designs cellulose ether products based on end-user application requirements, delivering the most suitable cellulose ether solutions for your needs. SidleyCel MP/ME is specifically engineered for mortar building materials. Inquiries are welcome.
